GCC Puma 4 – 132LX 1320mm Cutting Plotter
Specifications
| Manufacturer | GCC |
| Model | Puma 4 – 132LX 1320mm Cutting Plotter |
| Condition | Used |
| Stock Number | 4350430000182165.00 |
At a glance
The Puma IV vinyl sign cutter is an affordable yet powerful machine, cut eye-catching graphics at speeds of up to 1020mm/second (40.2 inches/second). It has 500g of cutting force a tracking ability of five metres (16.4 feet). Puma III is powered by a digitally controlled servo system and the Accu-alignment system II which comes as standard allows for precise contour cutting of digitally printed graphics by detecting the registration marks
Enhanced AAS II Contour Cutting System
- The Puma IV series features a standard Automatic-Aligning System(AAS II) to guarantee precise contour cutting by detecting the registration marks on digitally produced images.
Specification
Max Cutting Width:1300mm
Max. Media Width:1470mm
Max. Cutting Force:500G
Max. Cutting Speed:1,020 mm/s(40.2 ips) (at 45° direction)
Pinch Rollers:4
Material Thickness:0.8mm
Memory Buffer:32 MB / 16 MB (when using AAS)
Distance Accuracy:±0.254 mm or ±0.1% of move, whichever is greater
Power Supply:AC 100-240V, 50~60 Hz (auto switching)
Dimension (H x W x D) mm:1065 x 1632 x 620
- Available for immediate collection
- Barely used and very good condition
- Was purchased during Covid but barely used
- Working condition

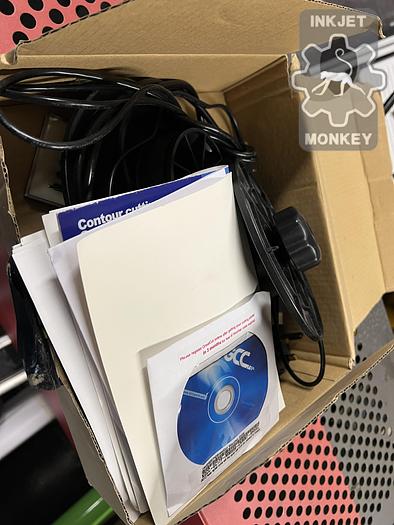

- Comes with remaining vinyl and small box of accessories
